Specification:
| GREAT WALL MACHINERY & MANUFACTURING (PHILIPPINES), INC. |

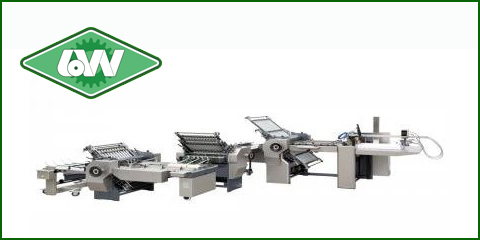

GWS670 BUCKLE FOLDING MACHINE
Host machine is four buckles + four buckles + four buckles model, optional inward/outward of 32-mo with ZYD470 simplex
folding machine.
Folding roller with precise cross-linked coupling and gear driving.
Folding roller with new technique guarantees strong suction capacity, perfect antirust capacity, and low printing ink
viscidity.
Declining paper conveying roller with high speed belt, ensures low noise and smooth transmission.
Each paper-out port with regulative paper conveying lever.
Electrical system controlled by microcomputer, each folding unit controlled by VVVF with overload protecting function.
Max. sheet size 670×1040mm
Min. sheet size 150×200mm
Sheet range 40-180g/m2
Max. folding roller speed 160m/min
Machine power 7.34Kw
Machine net weight 2700kg
Overall dimensions(L×W×H) 6000×3200×1630mm
