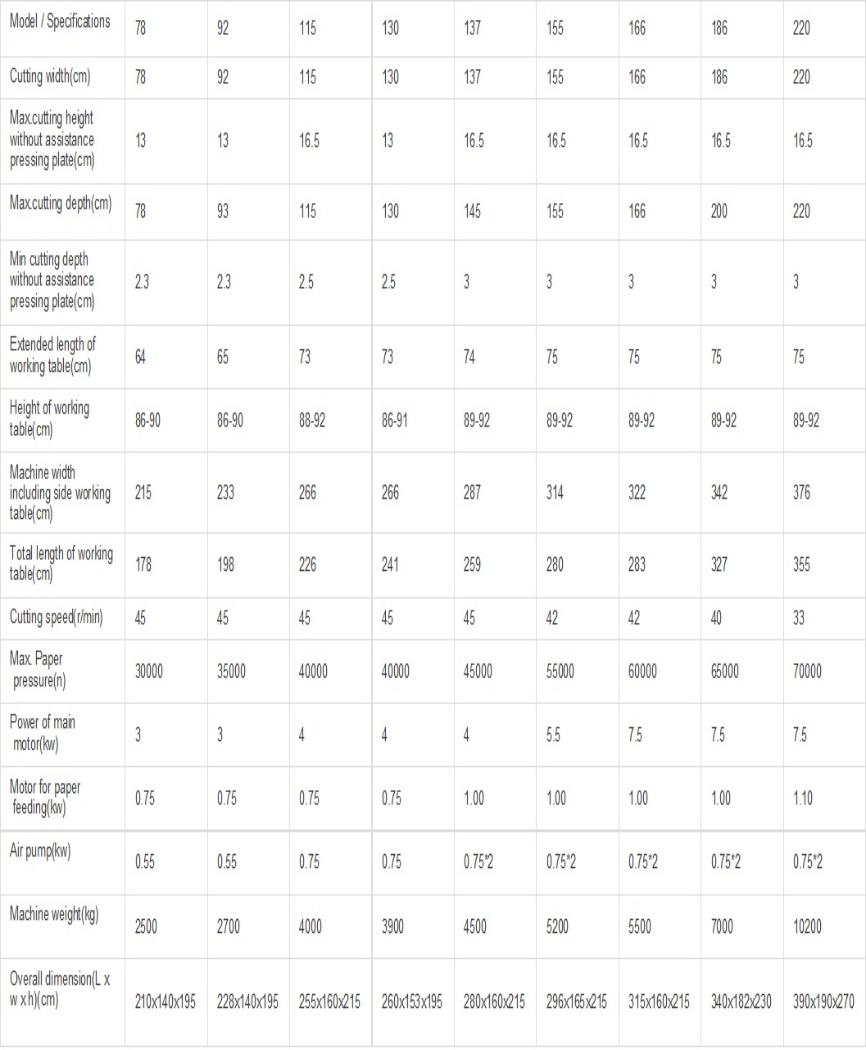

Specification:
| GREAT WALL MACHINERY & MANUFACTURING (PHILIPPINES), INC. |

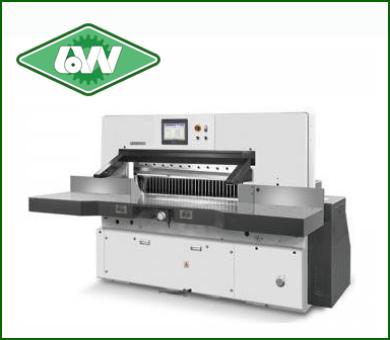

GWE SERIES PROGRAM CONTROL PAPER CUTTER
Japan alternative digital servo control technology; colorful touching LCD.The data resolution rate is 0.01mm. It has self-
diagnostic function of troubles and displays the operating pattern, and has 100 program units, over 10000 different
cutting positions,dynamic display of cutting and running, dynamic tracking,max feeding speed 8-20m/min. Powerful
computer operating system with more functions and it can store and memorize things.The storage time can be up to300,
000 hours with self-maintenance of the operating system. Hydraulic components are adopted from Italy ，electrical
components from France、Germany、Japan、Korea，Taiwan ball lead screw，Linear double guide rails, PLC control
system are adopted to monitor all mechanical implementation,Its key parts adopt imported bearing of low maintenance..
Pass EU Safety Standard”CE”Certification.
Japan alternative digital servo control technology; colorful touching LCD.The data resolution rate is 0.01mm. It has self-
diagnostic function of troubles and displays the operating pattern, and has 100 program units, over 10000 different
cutting positions,dynamic display of cutting and running, dynamic tracking,max feeding speed 8-20m/min. Powerful
computer operating system with more functions and it can store and memorize things.The storage time can be up to300,
000 hours with self-maintenance of the operating system. Hydraulic components are adopted from Italy ，electrical
components from France、Germany、Japan、Korea，Taiwan ball lead screw，Linear double guide rails, PLC control
system are adopted to monitor all mechanical implementation,Its key parts adopt imported bearing of low maintenance..
Pass EU Safety Standard”CE”Certification.
