GREAT WALL MACHINERY & MANUFACTURING (PHILIPPINES), INC.

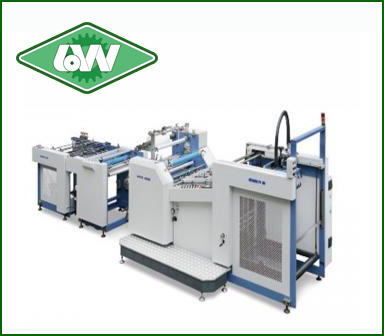

GWFM-800B AUTOMATIC DOUBLE SIDE LAMINATING MACHINE

l  Used for both single side lamination and double side paper lamination
GWFM serial fully automatic laminator is designed for thermal film lamination. This laminator is composed of feeding
unit, laminating unit and paper separation unit and paper collection system. The electric and pneumatic system is
equipped with programmable control (PLC). Heating roll adopts built-in oil heating system to precisionize laminating
temperature. This machine centralizes the features of compact structure, high automatization and humanized
operation design.

Configuration:

l  Overlapping regulator: Servo control and front lay to guarantee accuracy of paper overlapping.
l  Smart constant temperature heating roller:
Top heating roller equipped with built-in heater, temperature measuring
Sensor and temperature controller to make the temperature stable and constant
Bottom heating roller is equipped with cast aluminum heater for temperature control, stable fast temperature raise
and constant
l  Film shaft: air shaft with dividing rule make the loading, unloading and positioning of the film more accurate. The
extension of film is controlled by pneumatic breaker. The down film loader and unloader can shift with receiving roller.
l  Anti-curve device: it can avoid paper curvature due to shrinkage of film and make the paper smooth.lt has the
features of easy adjust and no shaking.
l  Electrical system: Schneider PLC inverter Omron and other international brand parts make the machine run
smoothly, easy adjust.
Specification:

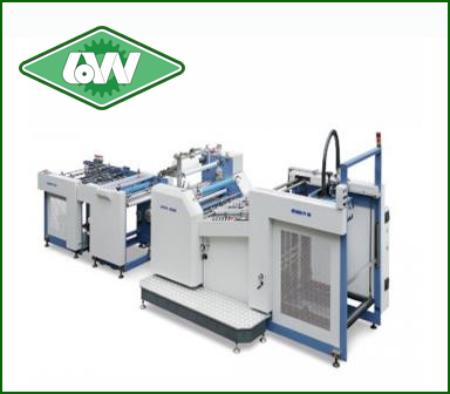

GWFM-800B AUTOMATIC DOUBLE SIDE LAMINATING MACHINE
